Single Phase / Two Phase All Features Version Thyristor Power Controller
Product Overview

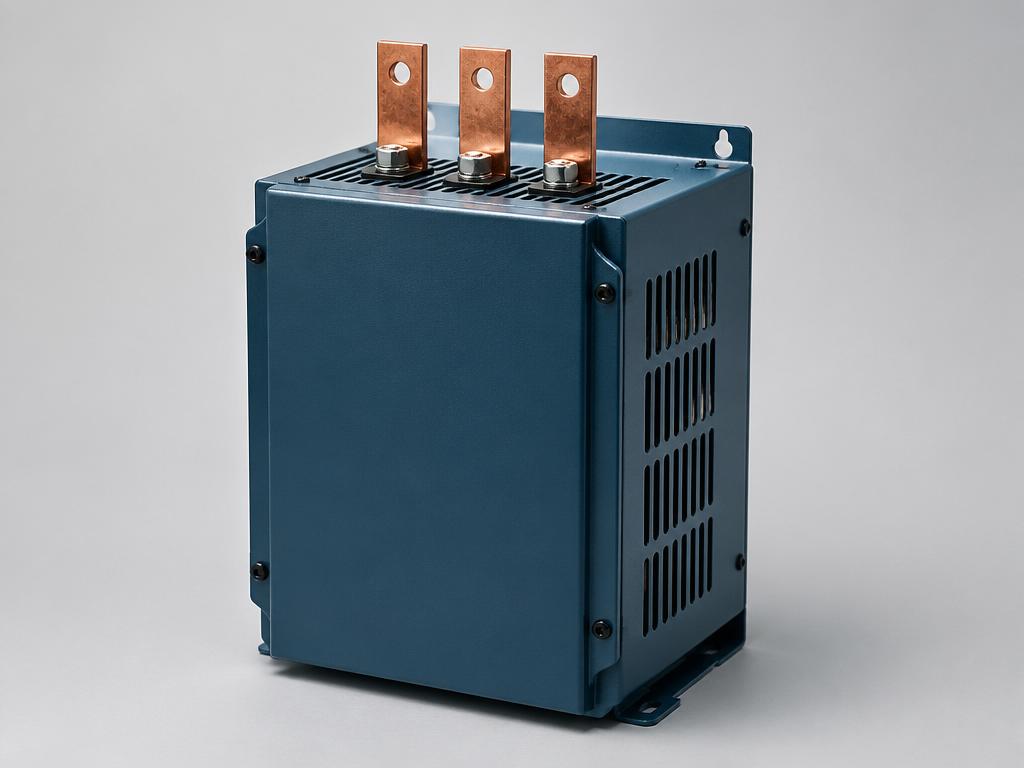

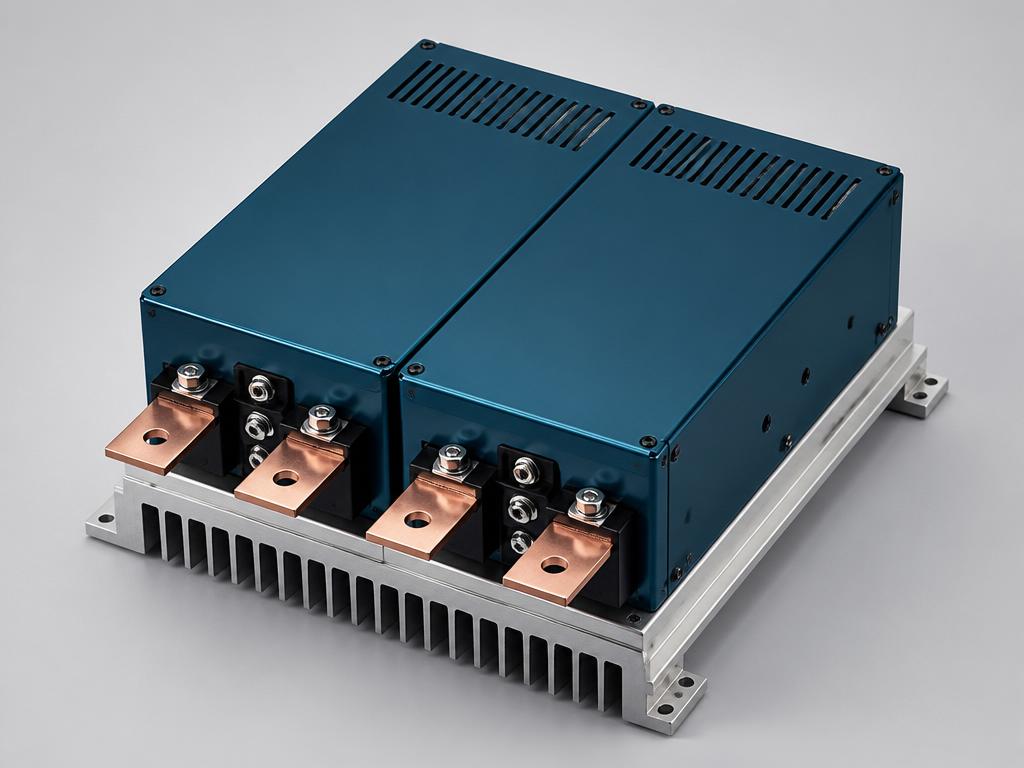

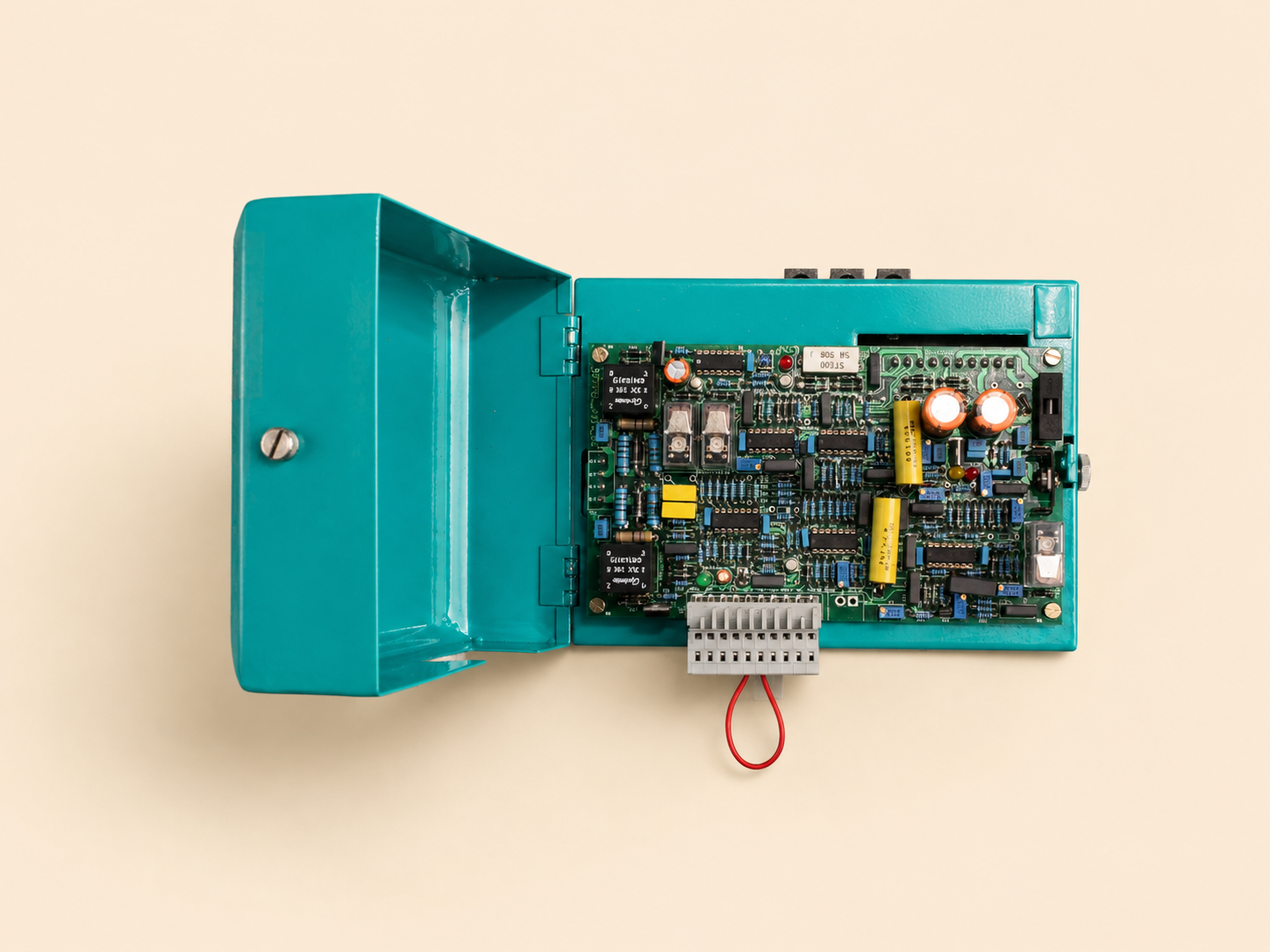

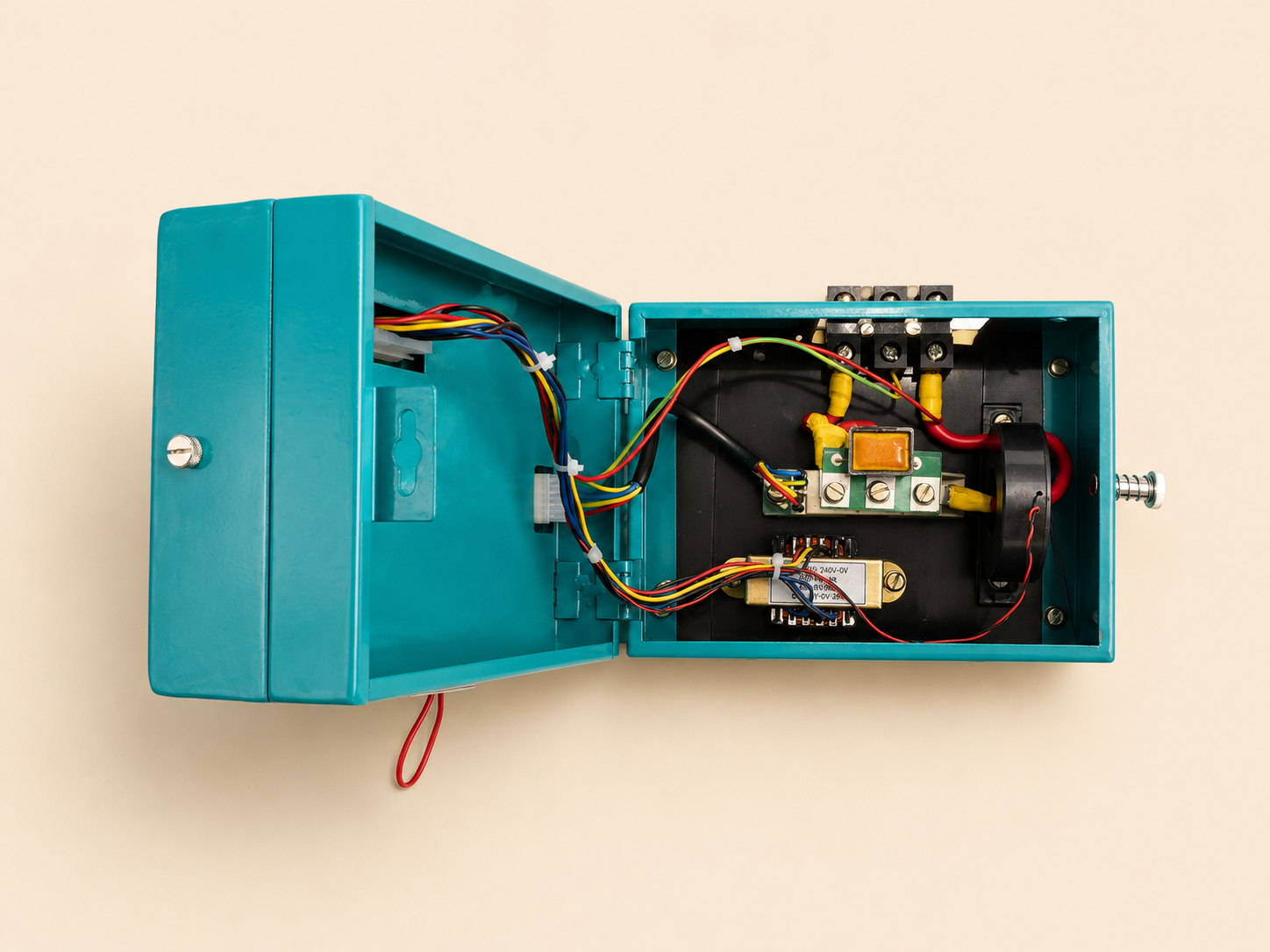

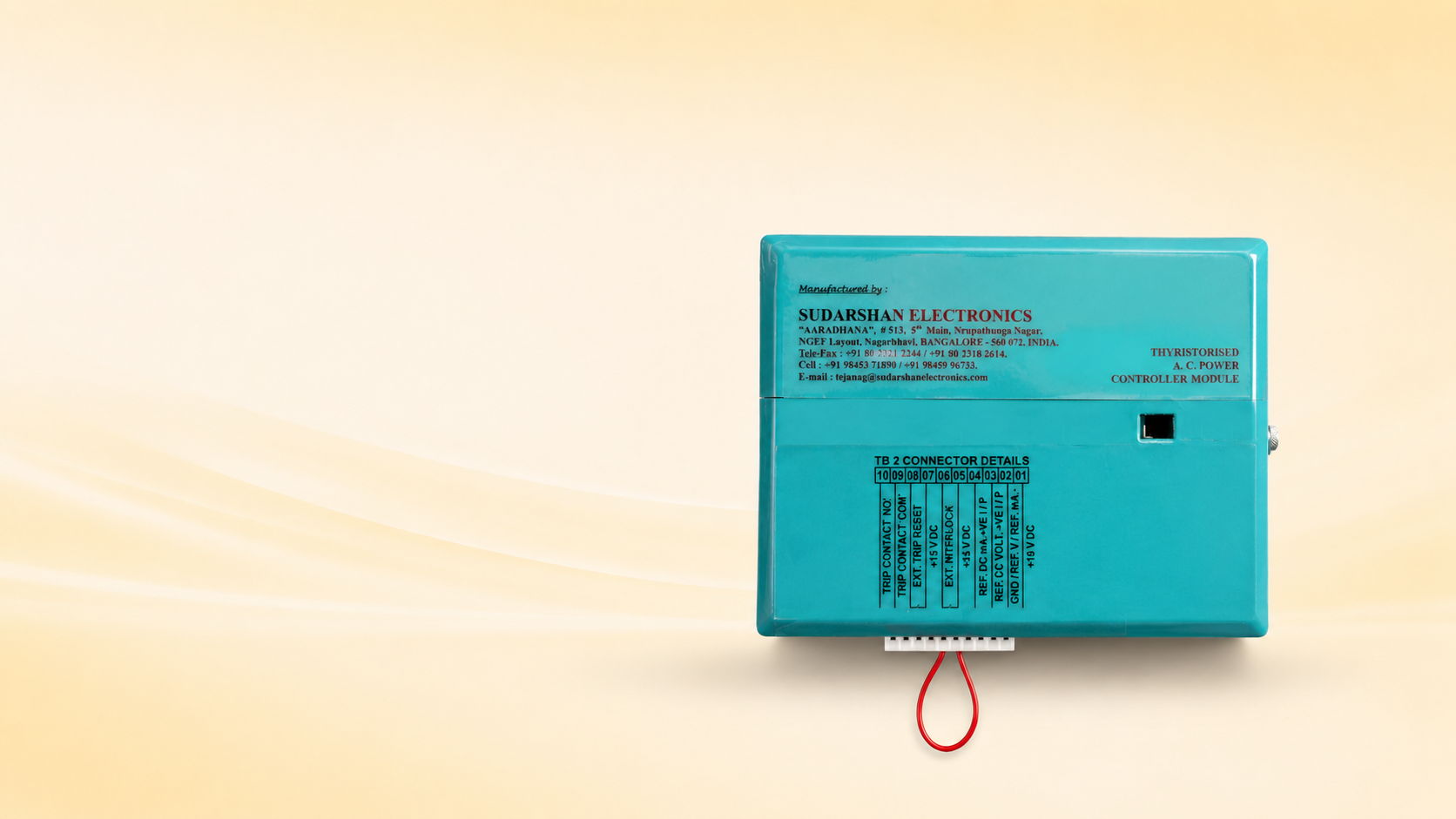

The Single Phase / Two Phase AC Power Controller – All Features is a full-featured thyristorised module designed for precise, reliable control of resistive and inductive loads in demanding industrial applications. In addition to the core stepless power regulation of the Economy model, it provides an integrated current limit facility for controlled load operation and instantaneous overcurrent trip protection for fast fault response. With configurable voltage and current bias settings and dedicated trip indication, it delivers greater control, protection and flexibility for furnaces, ovens, kilns and process heating systems.
Request QuoteTechnical Specifications
AC Input Voltage / Frequency (Range)
- 110V ±10%
- 230V ±10%
- 380V ±10%
- 415V ±10%
- 50Hz / 60Hz ±5%
Supply System
- 1 Phase
- 2 Phase
Control Method
- P / PI / PD / PID
Current Rating
- 15A – 300A
- Higher ratings available on request
Isolation
- 2.5KV RMS between Power Circuit and Control Circuit

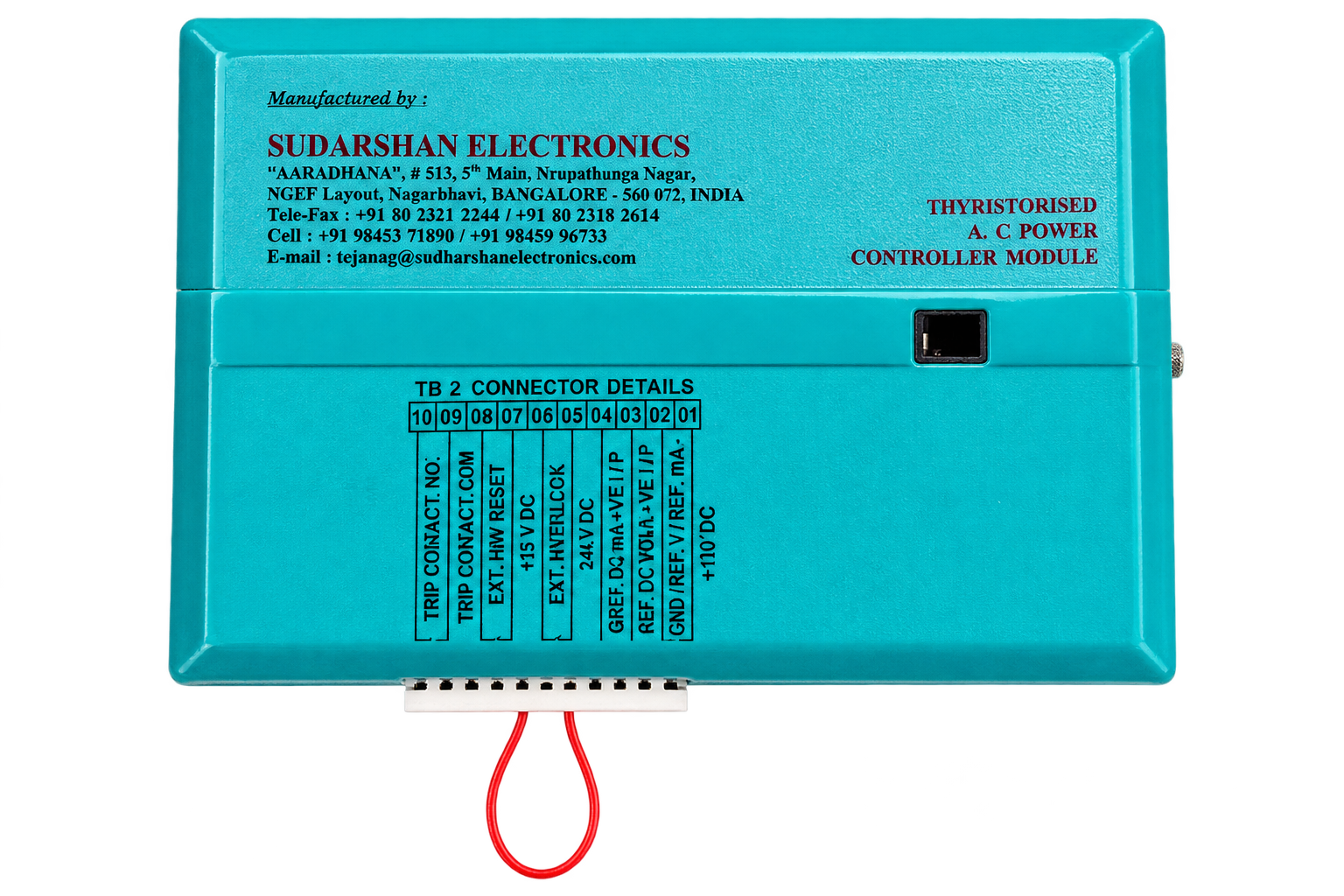

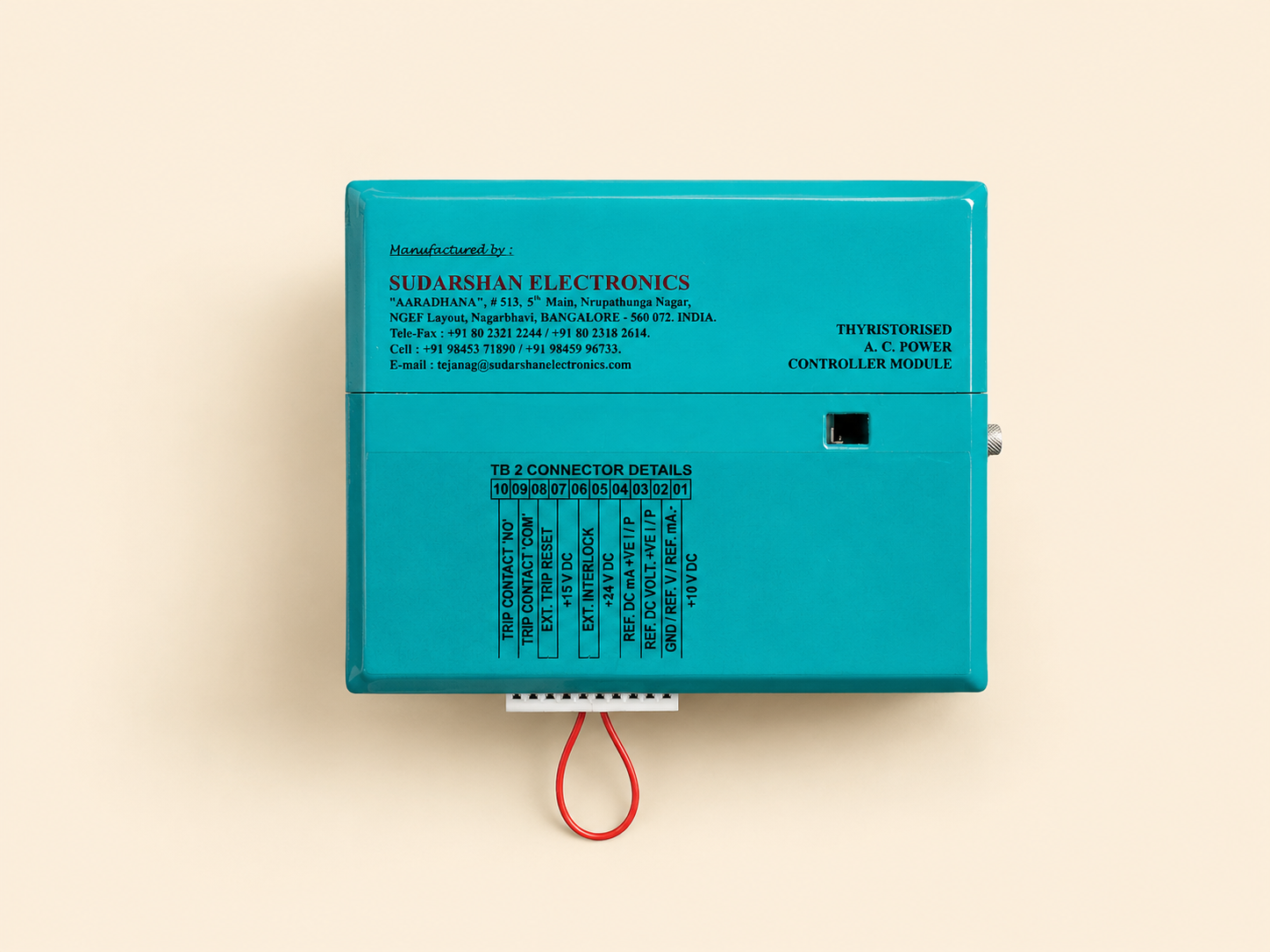

Control Signal
- 4–20mA DC
- 0–10V DC
- 10k Potentiometer
Features
Designed with advanced thyristor technology to deliver precise control, industrial reliability, comprehensive protection, and seamless integration for demanding heating applications.
PLL for Firing Pulse Synchronization
Phase lock loop keeps firing stable on noisy supplies.
Immune to Line Distortions & Fluctuations
Consistent output despite disturbed supply conditions.
Stepless Power Control
Smooth 0–100% regulation with no stepping.
RC Snubber (MOV) Protection
Suppresses transients across the thyristor stack.
SCRs Rated for 1400V PIV or Above
Generously rated devices for long service life.
Maximum Voltage Limit Facility
Sets a hard ceiling on delivered output voltage.
Heat Sink Over Temperature Protection
Thermal supervision of the engineered heat sink - for force cooled units.
Can Take 10% Overload for 2 Hours
Sustained overload capacity for demanding cycles.
Output Voltage Linear to Input Signal
Predictable, linear response across the full range.
Instantaneous Over Current Trip Protection
Fast-acting overcurrent shutdown to protect the thyristor stack and load.
Fault / Overcurrent LED Indications
Clear LED annunciators for fault and overcurrent status.
Trip Relay Potential-Free Contact
Potential-free relay contact for integrating plant interlocks and alarms.
External Trip Reset Facility
Remote reset input for clearing trips without opening the enclosure.
Separate Bias Settings for Voltage & Current Signals
Independent bias trims for accurate voltage and current scaling.
Current Limit Facility
User-set current ceiling to safeguard heaters and cabling.
